Lens Ring Joint Gasket
Kaxite sealing to supply Lens Ring Joint Gasket for all types Lens Ring Joint Gasket with good & superior quality, Lens Ring Joint Gasket hotline: 0086-574-87527771
-
Double Jacket Gasket
Kaxite sealing to supply Double Jacket Gasket for all types Double Jacket Gasket with good & superior quality, Double Jacket Gasket hotline: 0086-574-87527771
-
Corrugated Gaskets
Kaxite sealing to supply Corrugated Gaskets for all types Corrugated Gaskets with good & superior quality, Corrugated Gaskets hotline: 0086-574-87527771
-
PTFE Envelope Gasket
Kaxite sealing to supply PTFE Envelope Gasket for all types PTFE Envelope Gasket with good & superior quality, PTFE Envelope Gasket hotline: 0086-574-87527771
-
Rubber Sheet
Kaxite sealing to supply Rubber Sheet for all types Rubber Sheet with good & superior quality, Rubber Sheet hotline: 0086-574-87527771

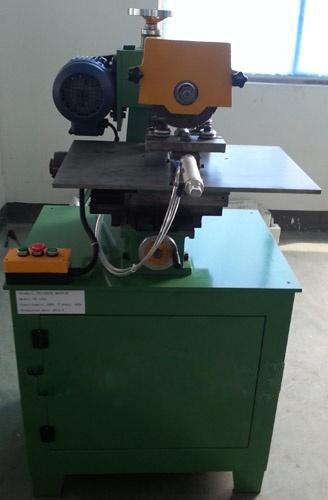

Polishing Machine For SWG Ring
This machine was designed to polishing the surface of the spiral wound gasket inner and outer ring
| Specification as following:： | |
| STYLE | KXT E1250 Polishing Machine for SWG ring |
| Polising ring thickness | 2-4mm |
| Maximum ring OD | 3000mm |
| Minimum ring ID | 120mm |
| Total power | 2.2kw |
| Spindle motor power | 1.1kw |
| Feed moter power | 0.04kw |
| Power supply | 380V/220V for option, 3 phases |
| linear speed | 0-100 mm/s |
| Air compressor | 0.6--0.8 Mpa |
| Measurement | 840 X 960 X 1560MM |
| Machine net weight | 250kg |
