Lens Ring Joint Gasket
Kaxite sealing to supply Lens Ring Joint Gasket for all types Lens Ring Joint Gasket with good & superior quality, Lens Ring Joint Gasket hotline: 0086-574-87527771
-
Double Jacket Gasket
Kaxite sealing to supply Double Jacket Gasket for all types Double Jacket Gasket with good & superior quality, Double Jacket Gasket hotline: 0086-574-87527771
-
Corrugated Gaskets
Kaxite sealing to supply Corrugated Gaskets for all types Corrugated Gaskets with good & superior quality, Corrugated Gaskets hotline: 0086-574-87527771
-
PTFE Envelope Gasket
Kaxite sealing to supply PTFE Envelope Gasket for all types PTFE Envelope Gasket with good & superior quality, PTFE Envelope Gasket hotline: 0086-574-87527771
-
Rubber Sheet
Kaxite sealing to supply Rubber Sheet for all types Rubber Sheet with good & superior quality, Rubber Sheet hotline: 0086-574-87527771

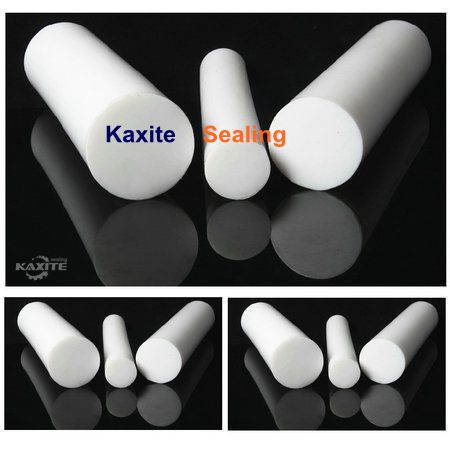

Molded PTFE Rods
PTFE rods may efficiently work at the temperature -200 oC- +250 oC. So it is an ideal element for the food industry. It consists of the best dielectric property. Due to this property, the rods are used in electrical and electronics industries
PTFE Teflon Round Rod Bar
We are one of the leading supplier and exporter of the ptfe rods in China. The ptfe rods are acknowledged for their property of very low coefficient for the friction. So the ptfe rods are self-greasing up rods.
PTFE rods may efficiently work at the temperature -200 oC to +250oC. So it is an ideal element for the food industry. It consists of the best dielectric property. Due to this property, the rods are used in electrical and electronics industries.
• Self lubricant
• High thermal resistance
• Chemically inert
• Easy installation
• Good dielectric property
• Anti friction
Usage
• In medical components
• In electrical and electronic parts.
• For manufacturing of gaskets
• For seals and bearings
• For food processing.
• For insulators.
|
PTFE Rod |
||
|
|
Standard Size: 25mm to 500mm
Length: 300mm
Grade: Virgin & All Filled Grades |
|
|
|
|
|
PTFE Extruded Rod |
||
|
|
Standard Size: 5mm Tto 200mm
Length: 900mm/1000mm
Grade: Virgin & All Filled Grades
|
|
|
|
|
Technical Data:
|
Properties |
Unit |
Result |
Standard Range |
|
BULK density |
gm/1 ASTM D 4894 |
476 |
450-500 |
|
Tensile strength |
MPa ASTM D 4984 |
32.7 |
210-350 |
|
Specific Gravity |
ASTM D792 |
2.14 |
2.1-2.2. |
|
Working Temp |
oC |
250 |
250 |
|
Hardness |
ASTM D 4894 |
58 |
52-58 |
|
Elongation |
% ASTM D 4894 |
286 |
250-400 |
|
Shrinkage |
ASTM-D-570 |
0% |
0% |
